ERICO  |  SKU: ECBM31

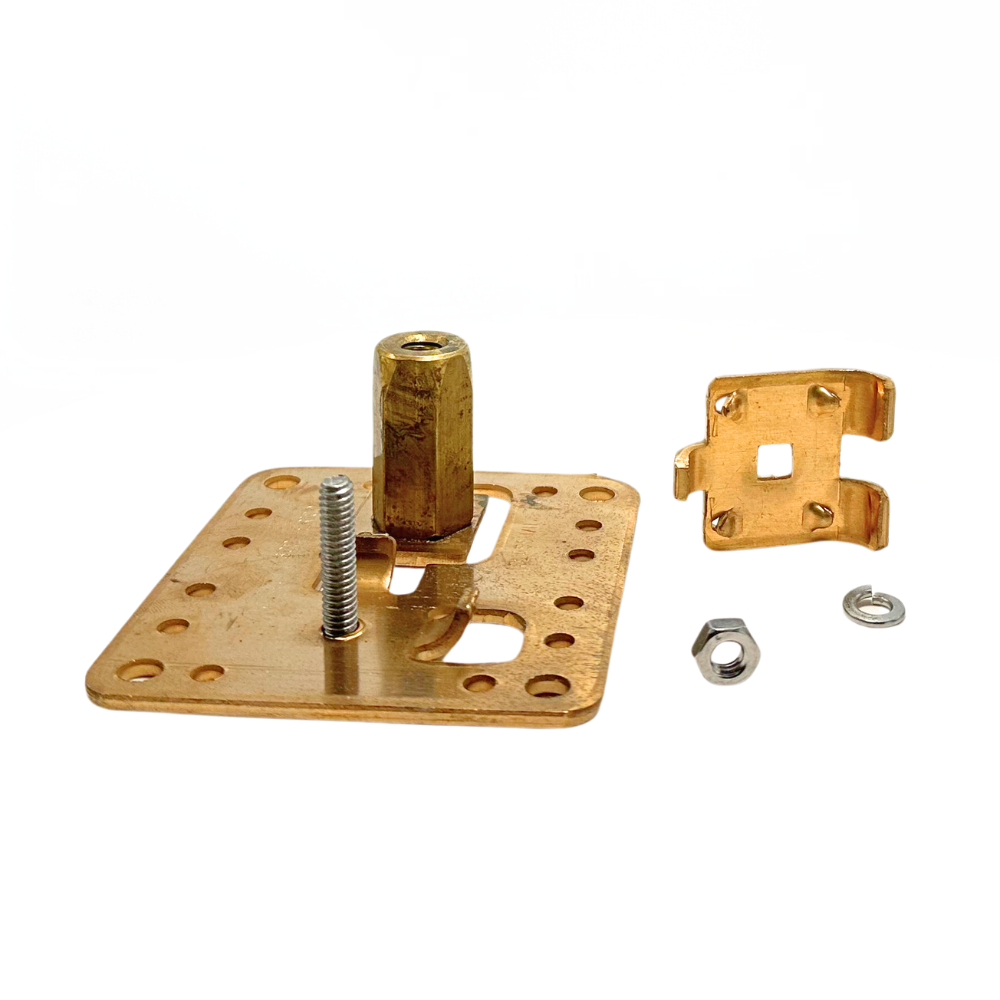

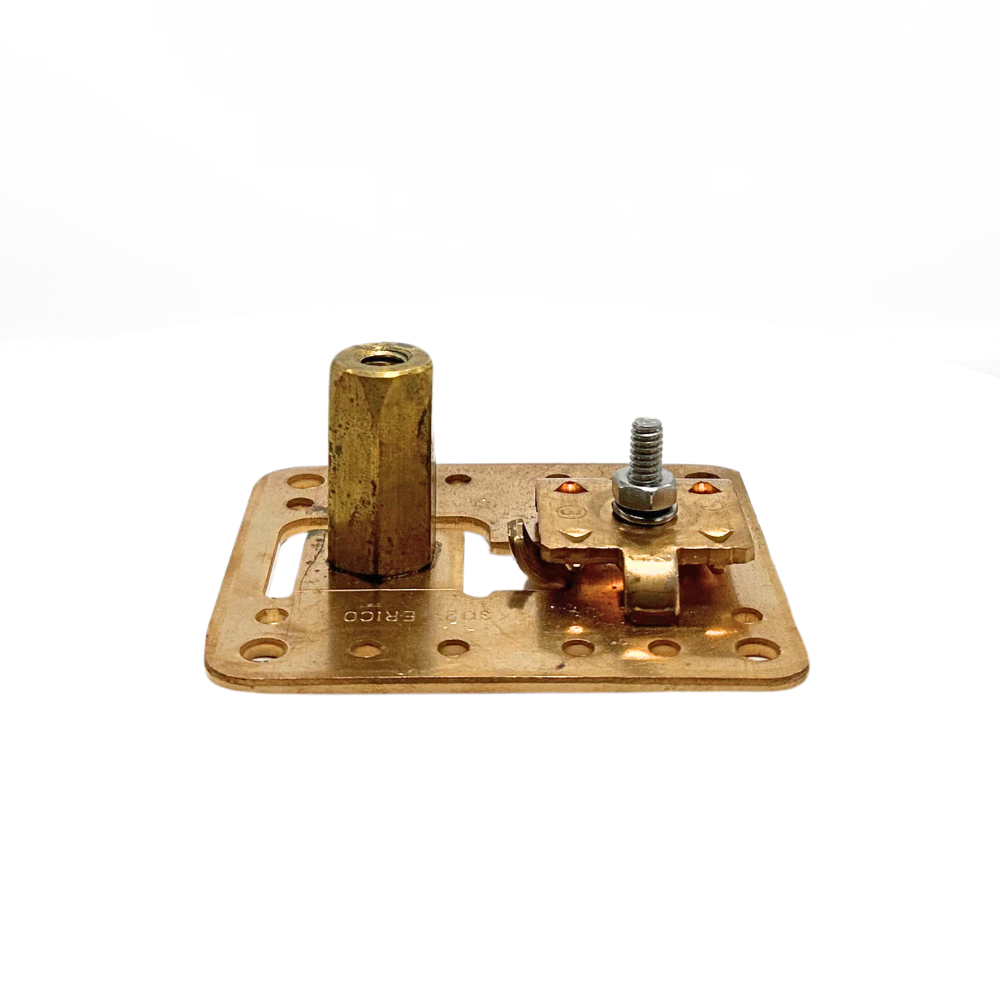

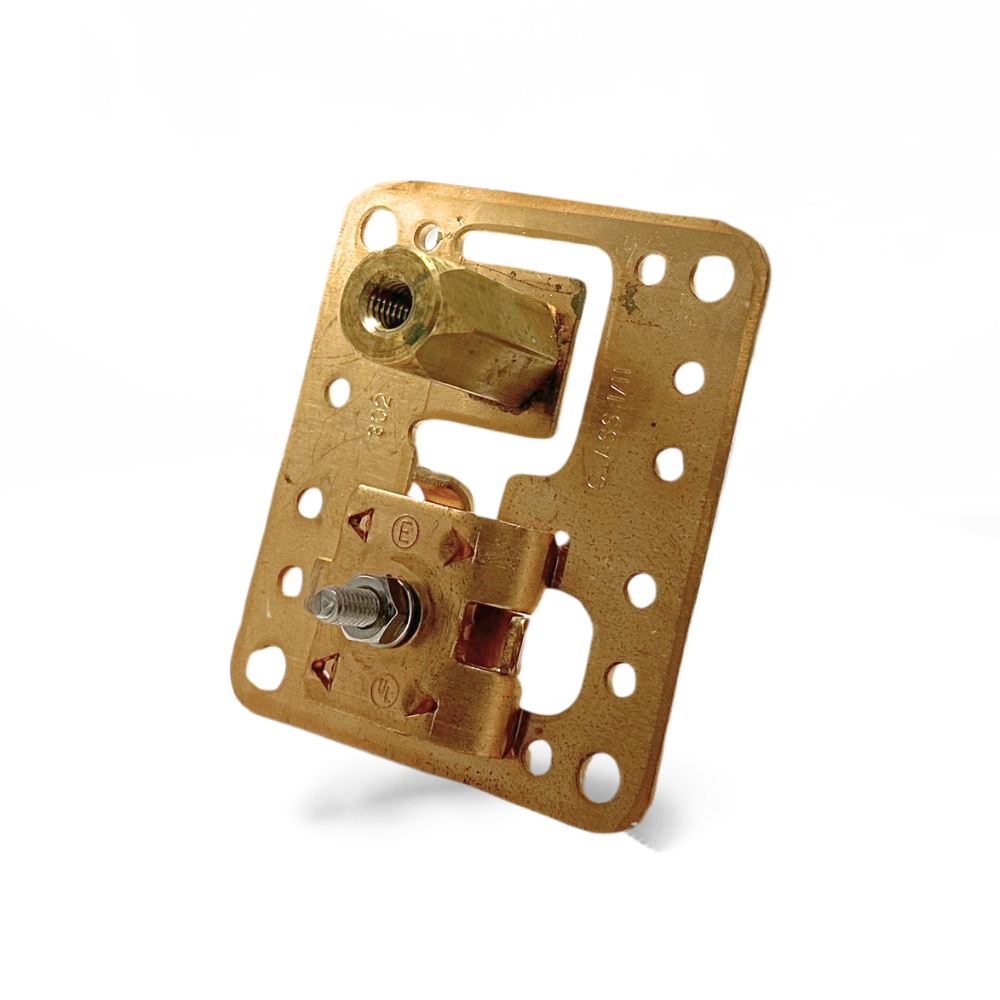

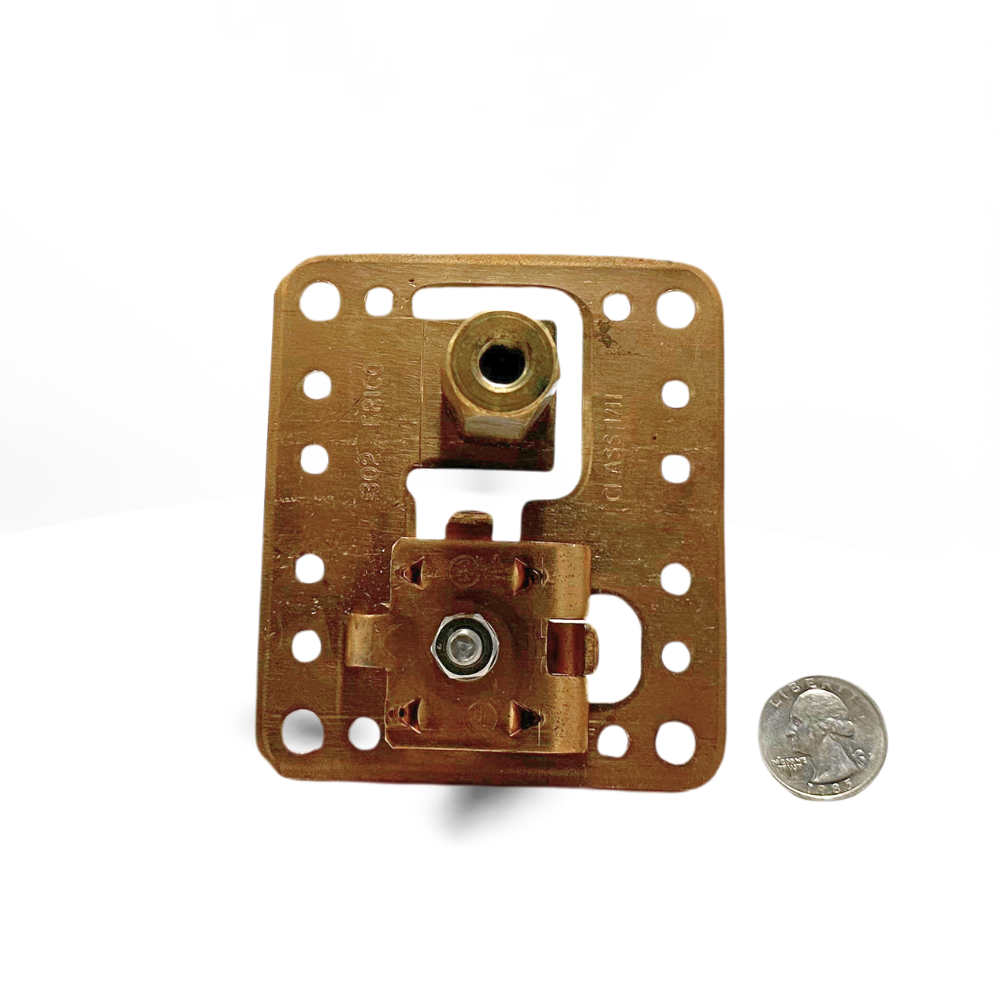

Copper Stamped Adhesive Base with Tabbed Swivel Head 3/8"

$48.57 $54.00


The Air Terminal Base with Tabbed Swivel Head is crafted from high-quality copper and features a 3/8 UNC thread. Designed for use on flat, vertical, or sloping surfaces, this versatile air terminal base provides reliable support for lightning protection systems. The field-adjustable air terminal support tab eliminates the need for additional swivel adapters, offering flexibility and ease of installation.

Key Features:

• Material: Made from durable copper for long-lasting performance and corrosion resistance.
• Design: Features a tabbed swivel head and 3/8 UNC thread for secure and adjustable support of air terminals.
• Compatibility: Suitable for flat, vertical, or sloping surfaces, providing versatility in various applications.
• Adjustable Support Tab: The field-adjustable air terminal support tab eliminates the need for swivel adapters, simplifying installation.
• Installation Options: Can be installed with adhesive or screw-down fixings, ensuring a secure attachment.
• Cable Clamping: Positive single bolt tension mechanism for multi-directional cable clamping, ensuring a reliable connection.

Benefits:

 • Durable Construction: Constructed from high-quality copper, providing excellent strength and resistance to environmental factors.
• Versatile Application: Suitable for various surfaces and configurations, enhancing the flexibility of the lightning protection system.
• Easy Installation: Field-adjustable support tab and multiple installation options simplify the installation process.
• Reliable Connection: Positive single bolt tension mechanism ensures a secure and stable cable connection.
• Optimal Performance: Enhances the effectiveness and reliability of the lightning protection system by providing robust support for air terminals.

Applications:

• Residential Lightning Protection: Ideal for mounting air terminals on flat, vertical, or sloping surfaces in residential settings.
• Commercial and Industrial Buildings: Suitable for use in commercial and industrial buildings where versatile and reliable air terminal support is required.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You may also need:

A table comparing the facets of 5 products
Facet
Aluminum Lightning Conductor Adhesive Cable Holder For Lightning Protection Installation American Rod Company offers Lightning Protection Equipment UL-Listed Lightning Rod Lightning Conductor Electrical Grounding System Surge arrestor Lightning Rod Lightning Protection NFPA 780 LPI 175 UL96A
Aluminum Adhesive Cable Holder
View details
American Rod Company’s Stamped Bolted Parallel Cable Connector, perfect for Class 1 and Class 2 lightning protection, is shown here. The aluminum design accommodates up to 4/0 cables, featuring a one-bolt tension system for secure connection. Compliant with UL 96A, NFPA 780, and LPI 175 standards.
Aluminum Bolted Parallel Splicer (Economy)
View details
Class 1 Aluminum Lightning Protection Conductor.  non-insulated stranded conductor is aluminum has a 1/2" diameter. Lightning Protection Equipment UL-Listed Lightning Rod Lightning Conductor Electrical Grounding System Surge arrestor Lightning Rod Lightning Protection NFPA 780 LPI 175 UL96A
Aluminum Class 1 Main Sized Conductor (by the foot)
View details
Aluminum loop type cable strap fastener 1/2” width and 0.051” thickness it has a hole on each end that when a nail is put through both they will join completing the loop around. Lightning Protection Equipment UL-Listed Lightning Rod Lightning Conductor Electrical Grounding System Surge arrestor Lightning Rod Lightning Protection NFPA 780 LPI 175 UL96A
Aluminum Nail Strap - Pack of 20
View details
Copper lightning rod 16” length x 3/8” diameter  Lightning Protection Equipment UL-Listed Lightning Rod Lightning Conductor Electrical Grounding System Surge arrestor Lightning Rod Lightning Protection NFPA 780 LPI 175 UL96A
Copper 3/8" x 12" Air Terminal
View details
By
ByERICOERICOERICOUL ListedERICO
Price
Price
$1.69 $2.32
$8.62 $9.75
$2.05 $2.70
$5.40
$19.40 $21.60
Description
Description



Secure your lightning protection cables with our Aluminum Cable Holder, designed for use on built-up roof surfaces or other locations where drilling holes is not an option. This cable holder is perfect for applications involving hot pitch, roofing compound, or commercial adhesive, providing a reliable anchoring solution without compromising the integrity of the surface.

Key Features:

  • Material: Made from high-quality aluminum, ensuring durability and long-lasting performance.
  • Crimp Hold Fastener: Features a crimp hold design to securely fasten cables in place.
  • Compatibility: Suitable for use with aluminum conductor sizes ranging from Class 1 to Class 2 (up to 4/0 Max).Ideal for built-up roof surfaces or areas where drilling is not feasible.
  • Installation:  Equipped with 3 tabs for superior hold, offering enhanced stability compared to dual-tab models. Can be used with various adhesives, allowing for a hassle-free setup.
  • Flexibility: Engineered for adaptability, this cable holder can be shaped to various angles and bent up to 180º. Its premium aluminum construction ensures it can withstand multiple bends without breaking, providing versatile installation options to meet your specific needs.
This Stamped Bolted Parallel Cable Connector is specifically designed for connecting parallel cables in Class 1 and Class 2 lightning protection systems. Crafted from aluminum and able to accommodate cable sizes up to 4/0, this robust connector ensures a durable and reliable connection. It features a one bolt tension system that utilizes a 7/16” 1/4-20 stainless steel bolt with a lock washer for a secure and consistent connection. The overall dimensions of this connector are 1 1/2” x 1.78”, making it compact yet effective for various installation needs.

Key Features:

• Material: High-quality aluminum for outstanding durability and corrosion resistance.
• Design: Tailored to connect parallel cables in lightning protection systems, suitable for both Class 1 and Class 2 applications.
• Connection: Equipped with a one bolt tension system using a 7/16” 1/4-20 stainless steel bolt and lock washer to ensure a tight and secure fit.
• Compatibility: Ideal for cable sizes up to 4/0, providing versatility in handling different cable dimensions.
• Dimensions: Compact size with overall dimensions of 1 1/2” x 1.78” for easy integration into existing systems.
• Efficiency: Designed for ease of installation and reliable performance in maintaining cable integrity.



Sold by the Foot: Available in custom lengths to accommodate your specific project requirements. Lengths under 50 feet are supplied in a coil, while lengths over 50 feet are supplied on a plastic spool.

If you need different lengths please let us know.

Class 1 Aluminum Lightning Protection Conductor. This non-insulated stranded conductor is crafted from high-quality aluminum, offering the same conductance as its copper counterpart but with the added benefits of being lighter and more economical.

Key Features:

  • Material: Premium aluminum construction for excellent electrical performance.
  • Design: Features a smooth weave stranded design for superior flexibility and durability.
  • Size: 98.64 kcmil cross-sectional area, providing effective lightning conduction.
  • Diameter: The cable has a 1/2" diameter, making it easy to handle and install.
  • Certification: UL-listed, ensuring adherence to safety standards for lightning protection systems.

Benefits:

  • Cost-Effective: Aluminum provides similar conductance to copper at a more economical price point.
  • Lightweight: Easier to handle and install compared to heavier copper conductors.
  • Versatile Installation: Suitable for a variety of residential and commercial applications.



Arrives in a pack of 20
Our Aluminum loop type cable strap fastener is a versatile and convenient solution for securing main and secondary cables ranging from 1/4” to 1/2” in diameter. Its 1/2” width and 0.051” thickness ensure durability and reliability for various applications.

Key Features:

  • Material: Made from high-quality aluminum for strength and corrosion resistance.
  • Design: Requires only one nail or screw for easy installation, making it efficient and user-friendly.
  • Compatibility: Suitable for main and secondary cables with diameters between 1/4” and 1/2”.
  • Installation: Designed for use with a stainless steel nail or screw up to 3/16” diameter, providing a secure fit.
  • UL Listed- This part its listed with UL for lightning protection systems.

Copper Air Terminal 3/8" diameter and 12 inch long for buildings up to 75 feet in height.

Key Features:

  • Material: Made from premium copper for superior durability and conductivity.
  • Size: 3/8" diameter and 12" length, ideal for Class 1 structures not exceeding 75 feet in height.
  • Design: Equipped with a blunt safety tip to reduce the risk of injury during installation and maintenance.
  • Installation: Compatible with all 3/8" copper air terminal bases. The blunt tip design enhances safety while handling and installing the air terminal.
  • Durable Construction: The high-quality copper construction guarantees longevity and resistance to corrosion.

Ideal for safeguarding residential, commercial, and industrial buildings requiring Class 1 lightning protection, this Copper Air Terminal is an essential component for any comprehensive lightning protection system.
