Copper Flu Mount Base 1/2"
Copper Flu Mount Base 1/2" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Copper Flu Mount Base 1/2"

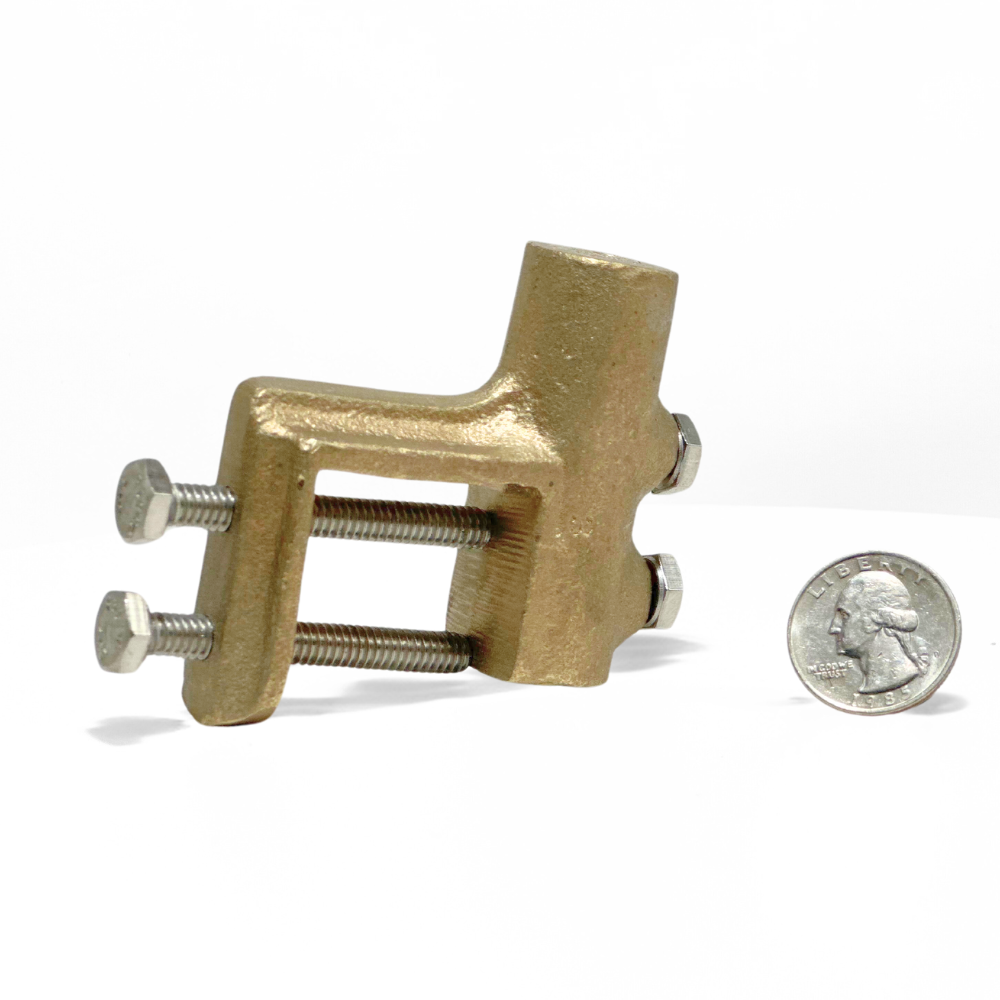

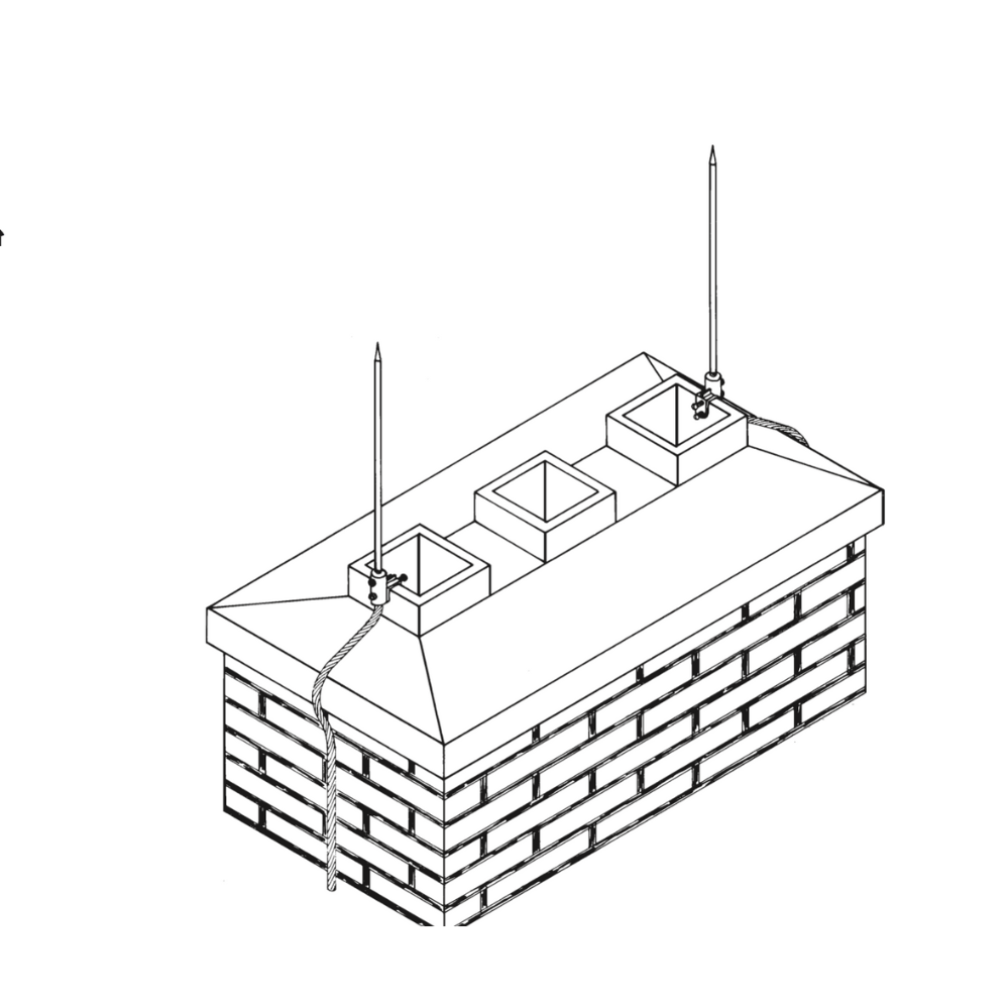

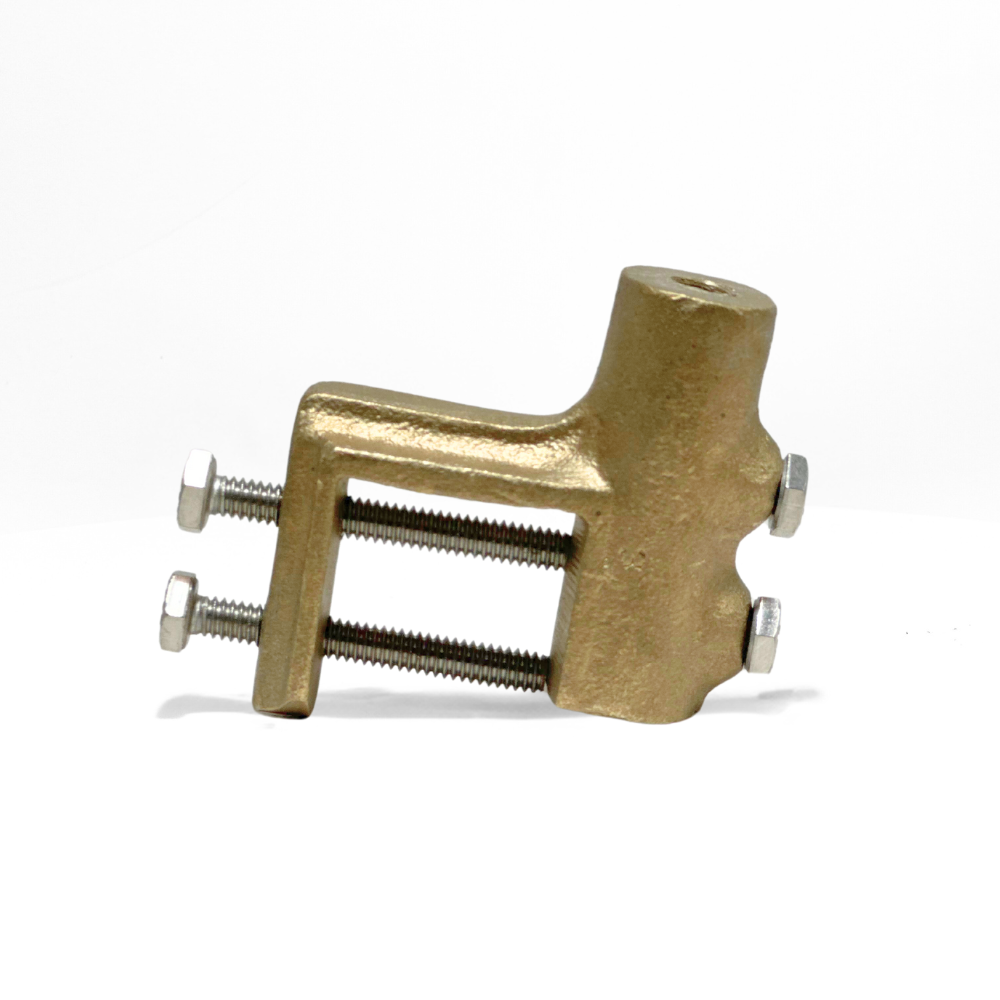

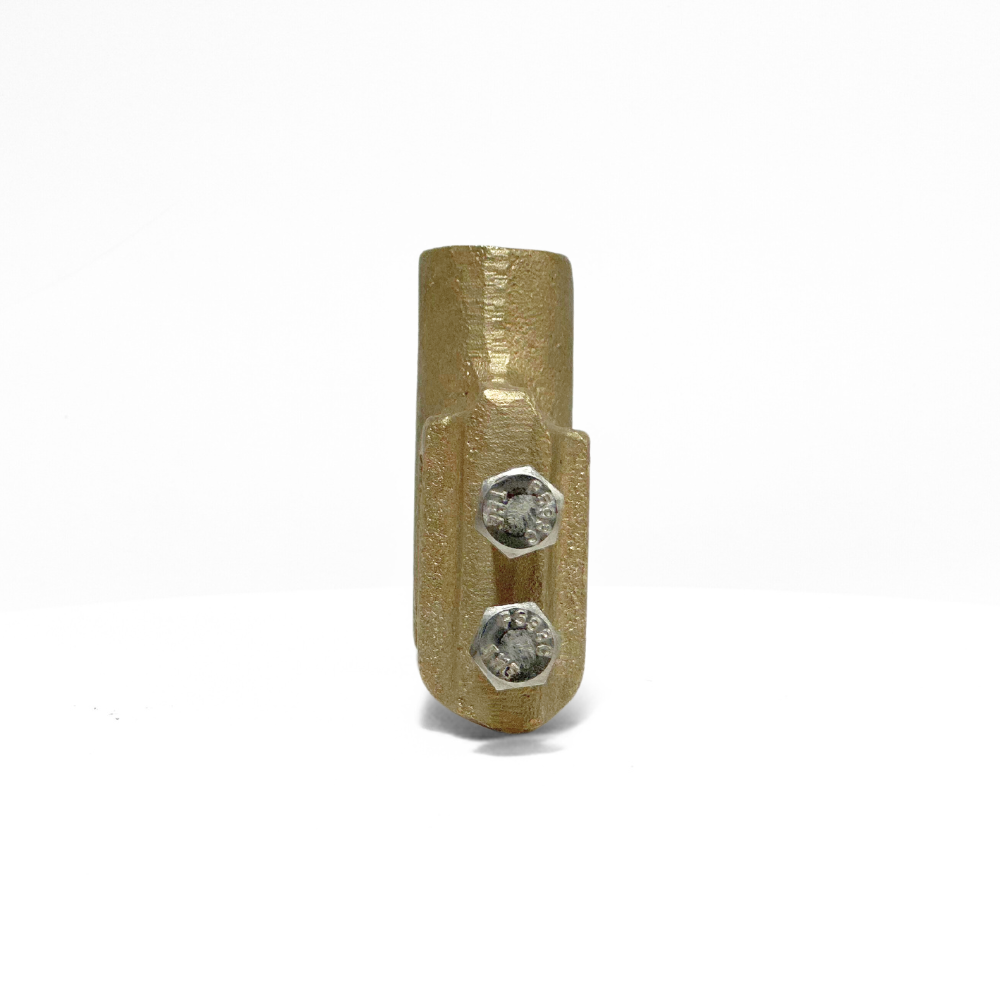

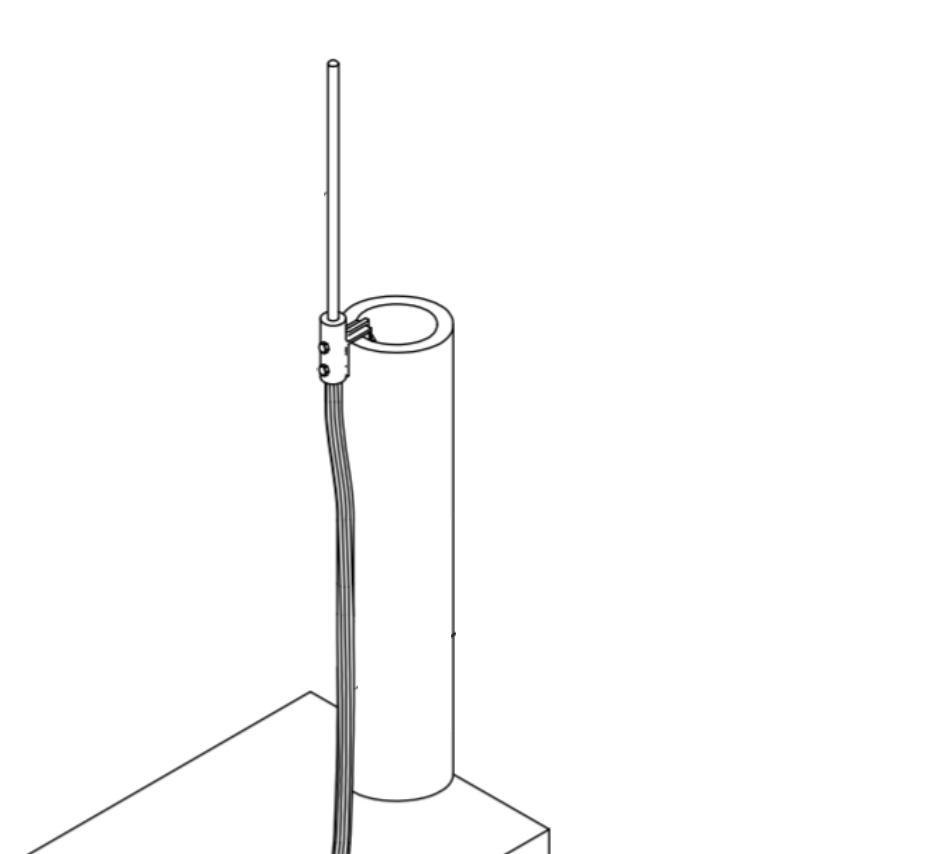

Copper Flue Mount 1/2", a specialized air terminal base designed for use on clay or glazed tile flue liner rims or roof vent pipes on Class 2 structures. This base provides a secure and effective solution for installing lightning air terminals on cylindrical bodies of all types.
Key Features:
- Material: Crafted from high-quality cast bronze for durability and optimal conductivity.
- Compatibility: Engineered to fit 1/2” diameter copper air terminals, and accept a class two copper conductor in the cable port.

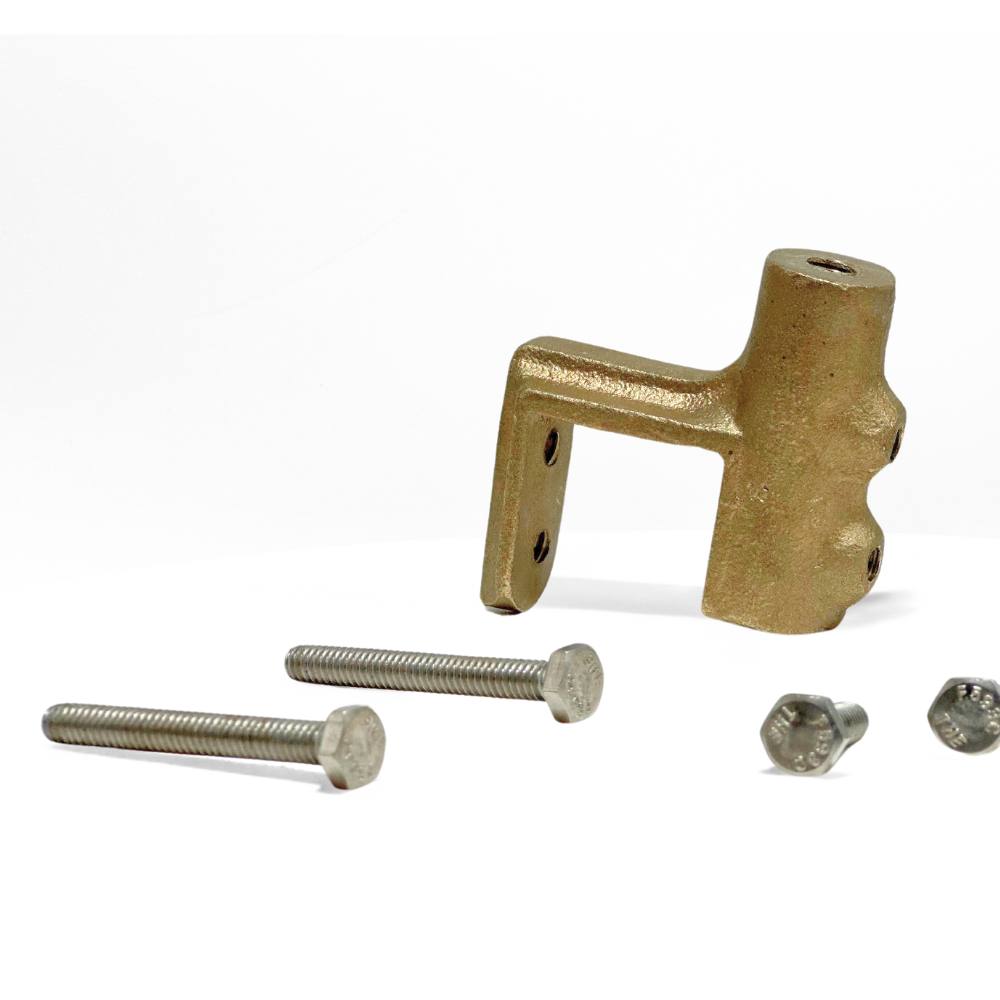

- Secure Attachment: Features two 1/4" set bolts for securing the base to tiles up to 1-1/4" thick.

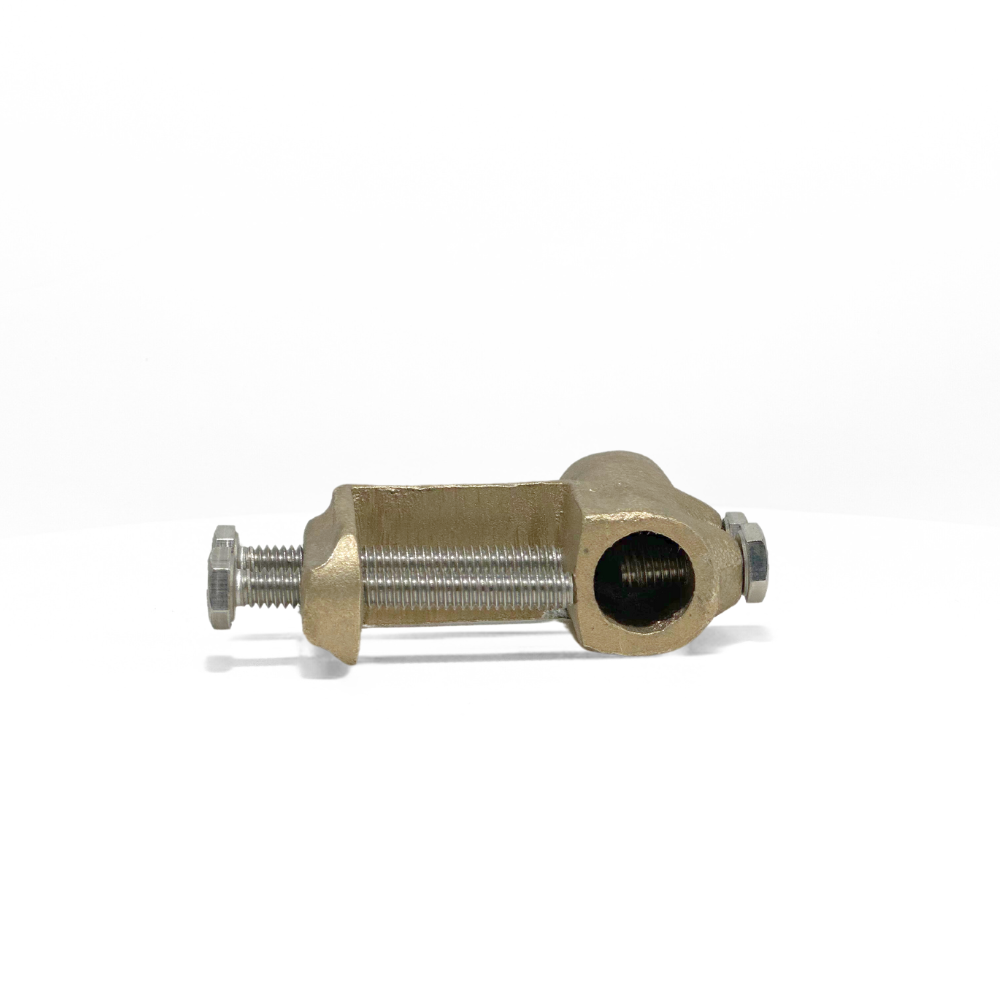

- Cable Contact: Offers a 1-1/2" cable contact area using two 1/4" set bolts for reliable pressure and connection.
- Dimensions: Compact design with dimensions of 3” x 3” x 1”, ensuring a low-profile installation.
- Maximum Torque: The mounting bolts can be tightened to a maximum torque of 25 in/lbs for a secure fit.
Ideal for residential and commercial buildings with tiled roofs or vent pipes, our Copper Flue Mount offers a robust and efficient solution for incorporating air terminals into your lightning protection strategy.
